Adrena Pro

1 203,752 349,17 tx excl.

Adrena Pro Software + Optima Pro + Routing + Dongle

Charts and currents not included

Clear
Category:

Description

All the know-how of ADRENA

For regatta

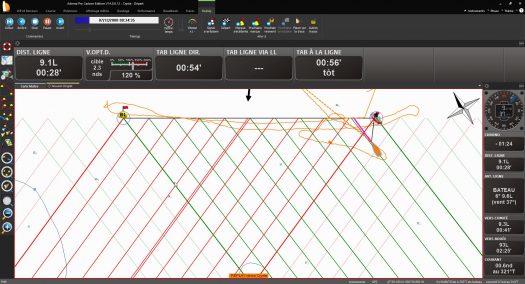

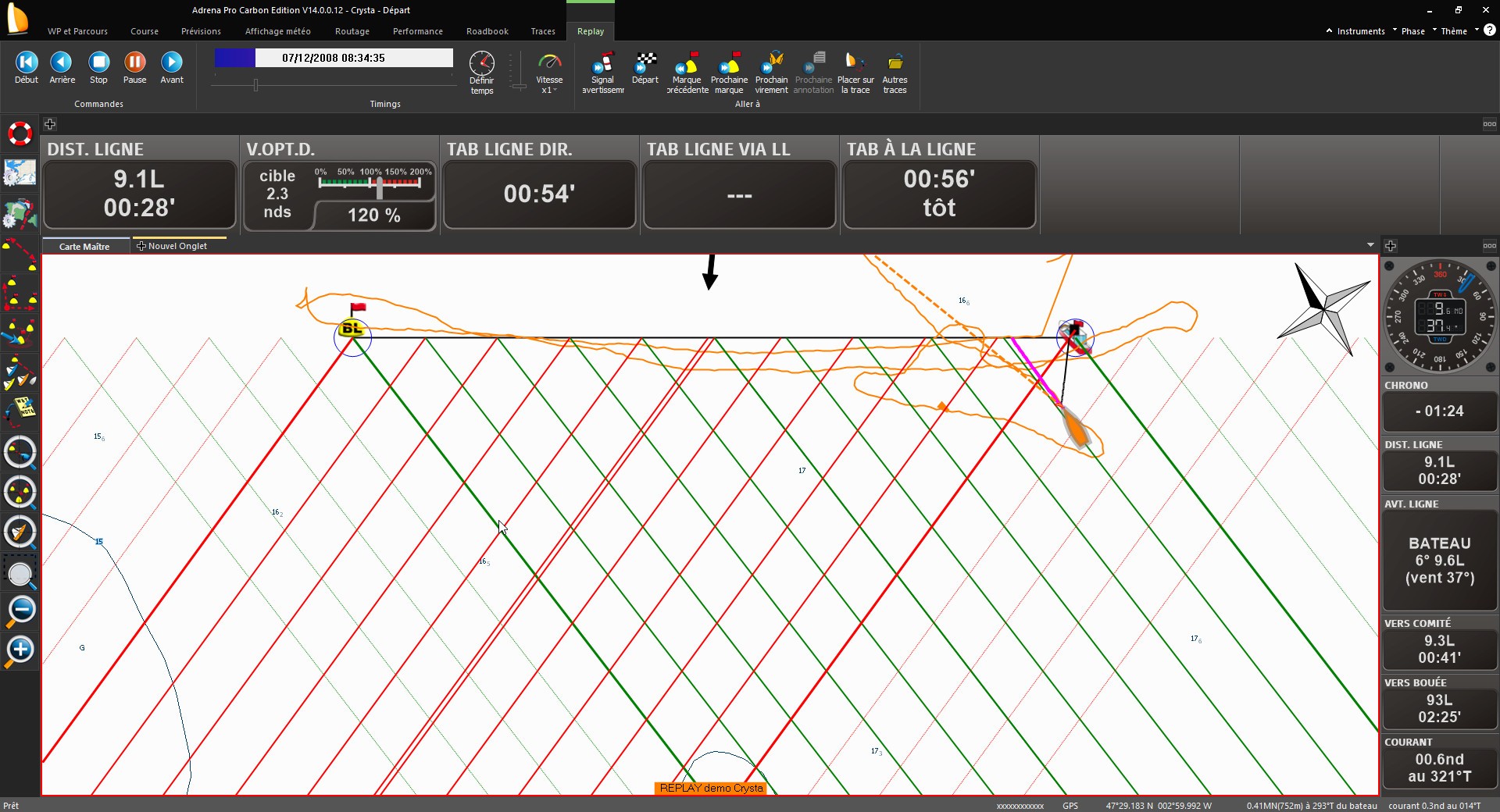

It calculates different assumptions to reach the line: direct, tacking, gybing and sailing above a layline. The rotation and acceleration timing are integrated in the time to the line and laylines calculation.

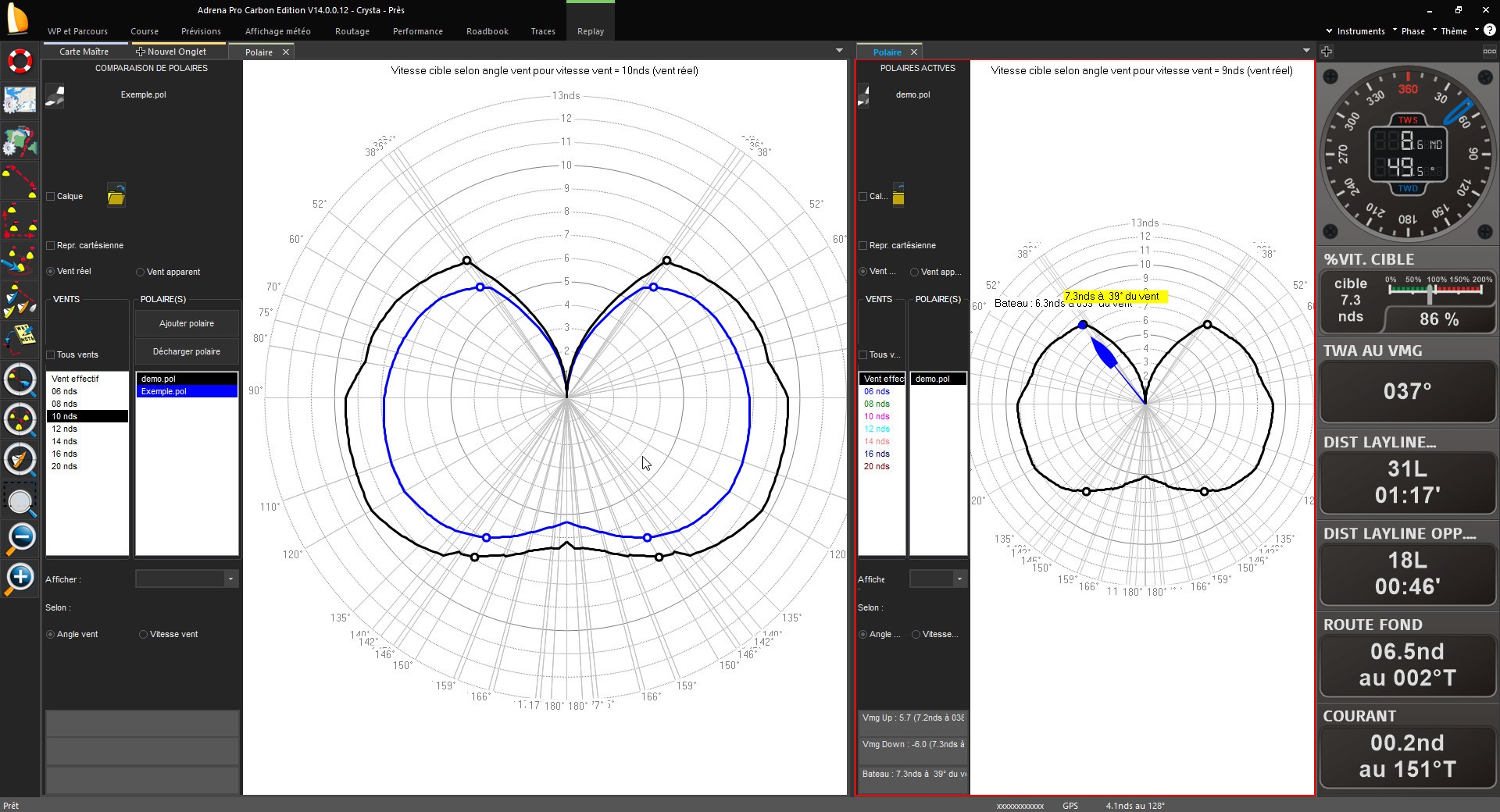

Polars

3 different polars are managed: departure, navigation and performance. They can be adjusted during the race.

Multimedia

Multimedia content synchronization (photos, videos and sound) illustrate the tracks, Roadbook, Sailects or Trimbook for even more detailed records of your sailing.

Tracks and tracks analysis

It is also possible to analyze the loss when maneuvering, to integrate and synchronize external data into the tracks (sensors, records)…

Communication with the shore

All data received from the CPU can be transmitted to the shore. Thus, the route
planner is aware of the current sailing conditions of the boat and can compare
them to GRIB files in order to adjust the route and to send a routing to the boat.

Micro-routing on laylines

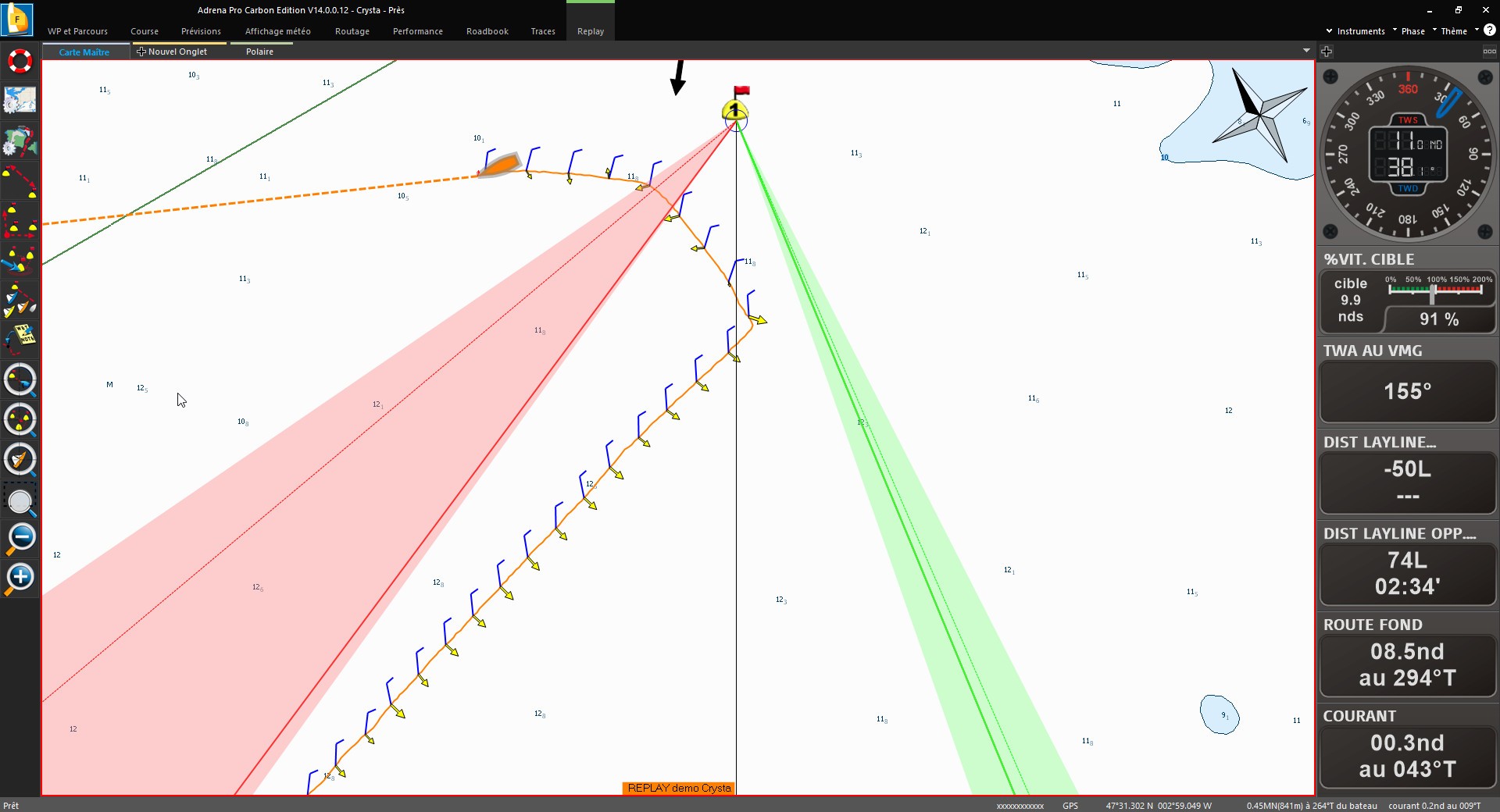

On a leeward or a windward leg, it enables to know what is the best side of the square and the time difference expected between the «max on right side» and «max on left side» routes.

Video creation on routings

Useful in sailing mode in addition to simulation, it enables to study in details the expected boat progression in weather systems, to replay step by step, forward and backwards…

It is an essential pedagogical tool during the trainings which enables to display and to record the most interesting strategic situations.

Optima Pro

Included in the AdrenaPro software, this advanced features tool is used for Sailect creation, tracks analysis, data reading and collecting as well as polar diagrams calculation.

Additional information

PC Configuration

PC running under Windows 7 or 8 or 10 ('Ready for Windows')

Screen

1024X768 minimum

NMEA Connexion

NMEA 0183 connexion via port COM, USB or network

USB Slot

Dedicated USB slot for the dongle

DVD Drive

DVD drive for software and charts installation

Graphic memory

256 Mo min

CPU

1,5 GHz mini / 2 GHz recommended

Free disk Space

2 Go mini / 6 Go recommended

Navigation

  • Touch screen mode
  • Calibration of instruments (log, compass and windvane)
  • Waypoints and routes management
  • Global tide module

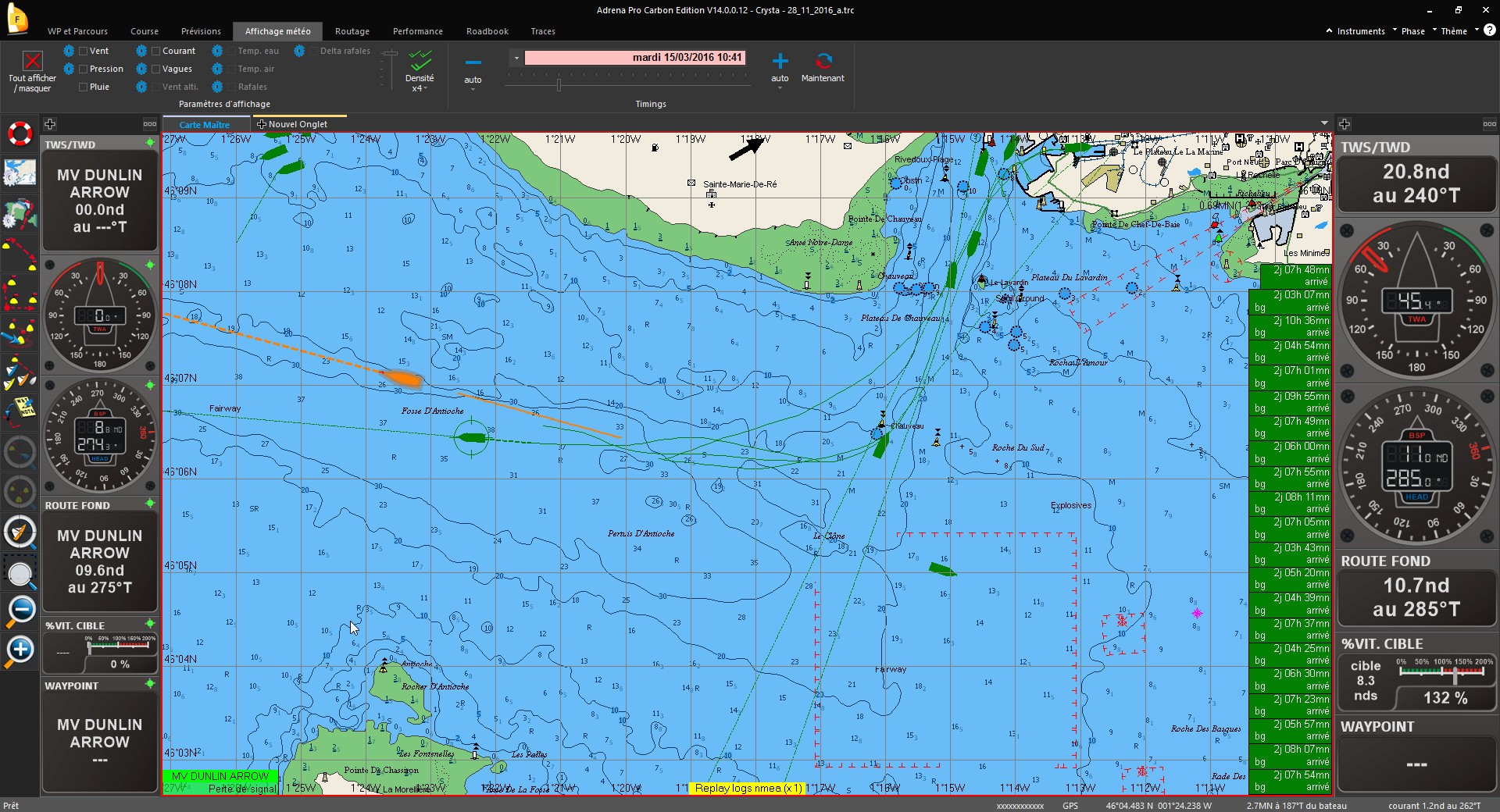

  • Electronic vector charts (C-Map MAX) or raster charts (SnMap, BSB)

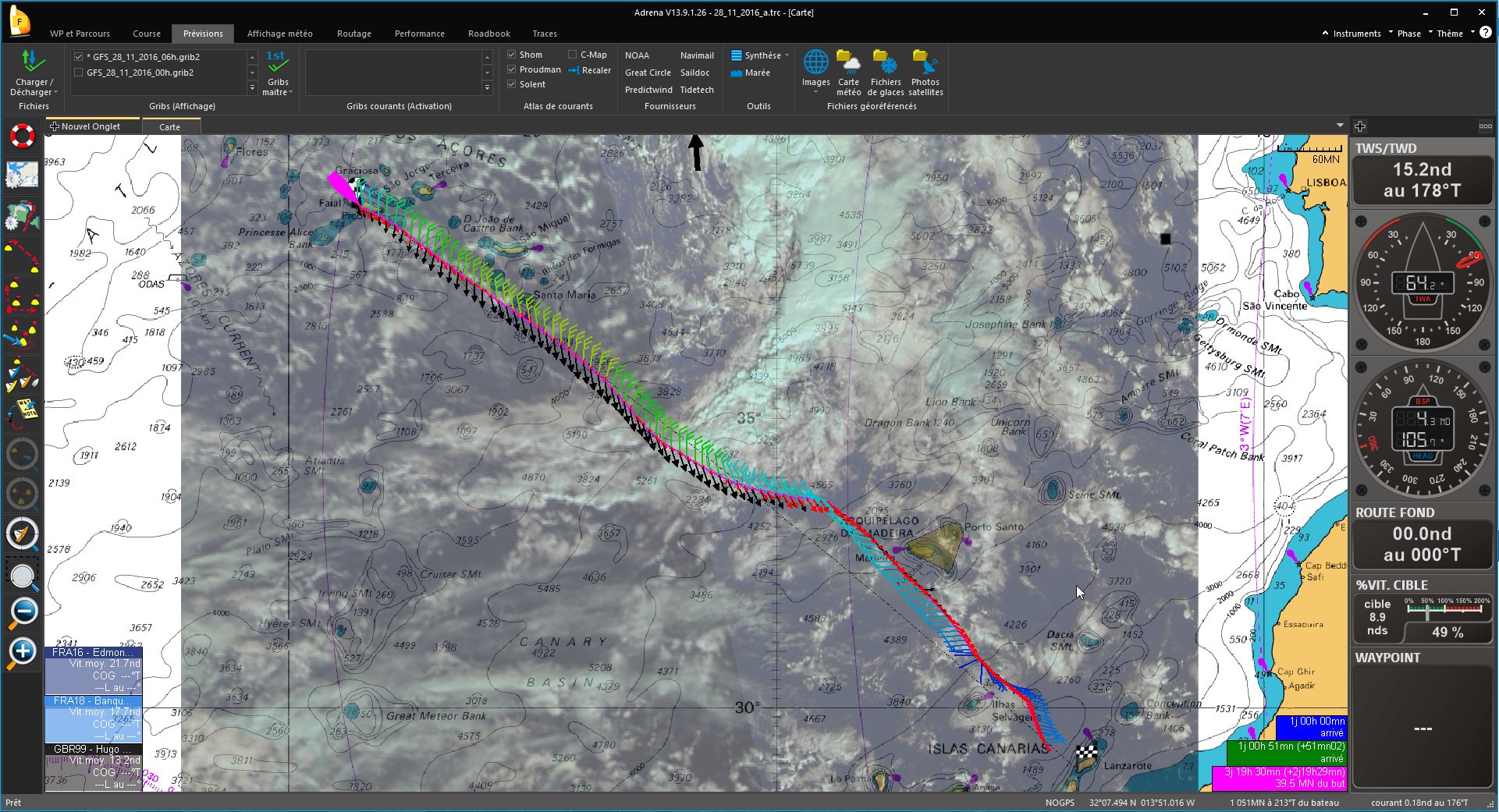

  • Reading and display of GRIB files

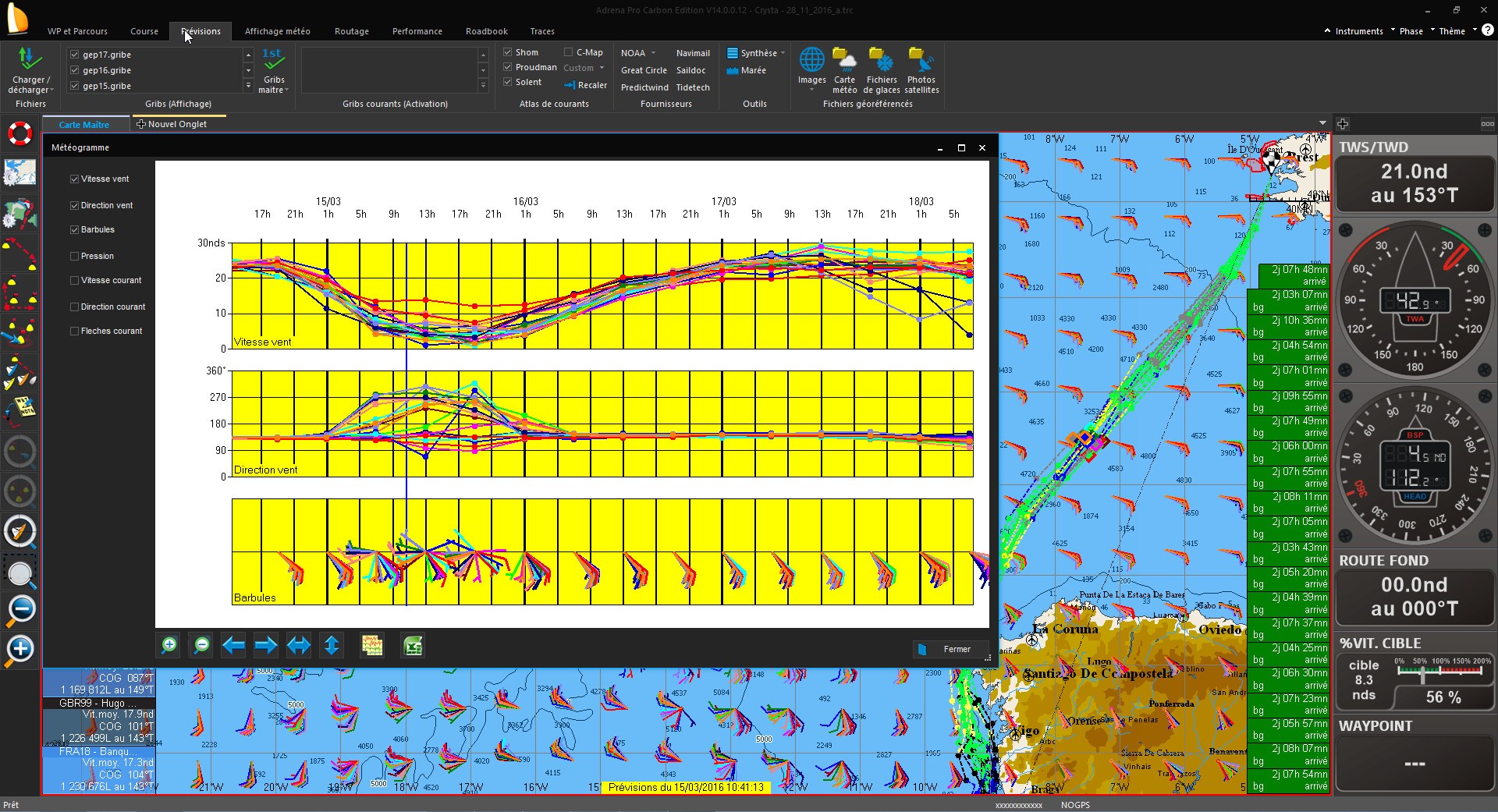

  • Meteogram
  • UGRIB, Navimail, Predictwind, Tidetech and Great Circle direct interface
  • GRIB files download online and by email up to 16 days
  • Logbook (position, wind, speed and observations)
  • Tide charts: SHOM, Proudman and Winning Tides
  • AIS Anti-collision system
  • Alarms (MOB, mooring, arrival on coasts, AIS…)
  • Custom alarms
  • Import/Export of GPX files (waypoints, courses and tracks)
  • Roadbook with images overlay
  • Datagrams: data evolution along the route (current, sailect, …)
  • Integration of external current atlas
  • Loading of historical GRIBS and ensemble forecast
  • Automatic loading of NOAA GRIB

Regatta

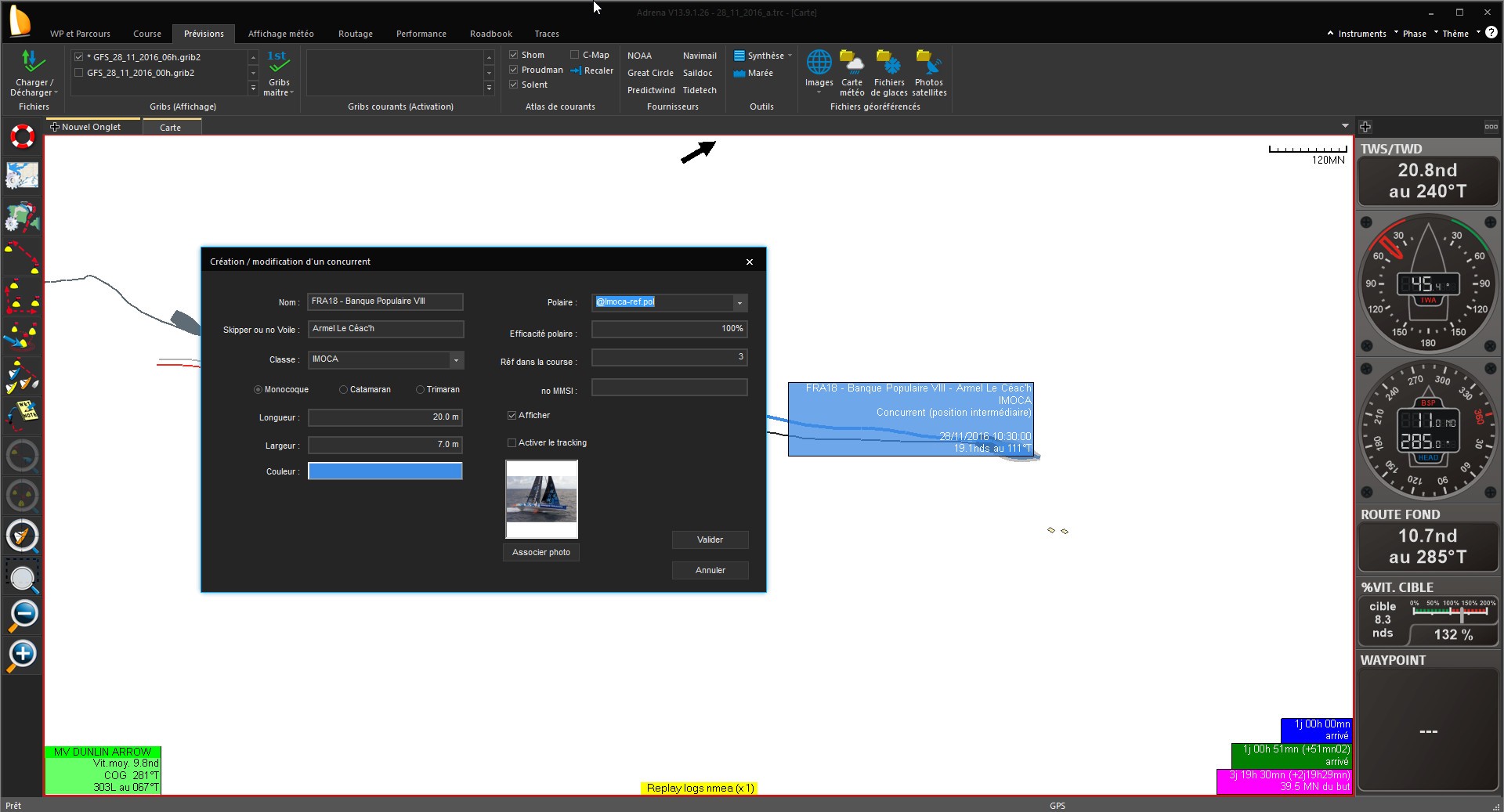

  • Competitors monitoring
  • Calculation of recovered time IRC/HN
  • Management of the start, windward/leeward and coastal route

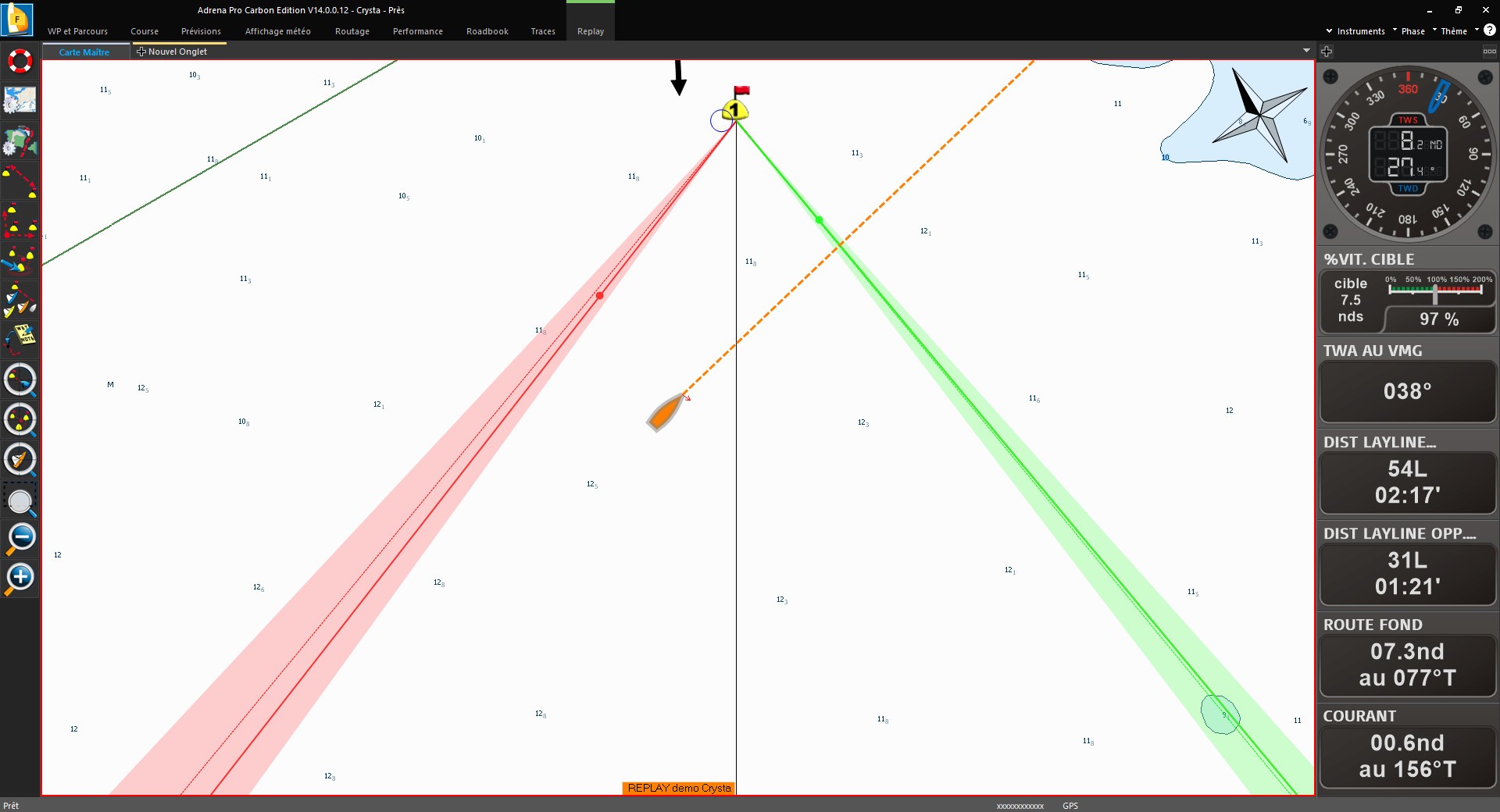

  • Laylines calculation and display
  • Current integration in laylines and time to the marks
  • Sending calculated data to iPhone or iPad
  • Safe Starting Area
  • Calculation of time of rotation and acceleration of the boat
  • Time to the line taking into account maneuvers
  • Data averaging
  • Management of a leeward gate
  • Use of specific polars: start, navigation and performance
  • Adjustment of polars in real time

Performance Analysis

  • Polars calculation from automatic recordings
  • VPP polar diagrams creation
  • Import and reading of sails range charts (Sailect)
  • Performance analysis (VMG, target boatspeed…)
  • Graph of data history: histo-graph
  • Replay of recorded tracks
  • Multiple replay (several boats)
  • Tracks analysis: statistics, speed tests…
  • Sailect creation and modification (sails usage charts)
  • Polars calculation by configuration (sails, keel, ballast)
  • Polars comparison
  • Graphic and numerical modification of polars
  • Table of the best configurations
  • Trimbook: setting notebook
  • External data integration in the tracks
  • Data exchange with external software (Sailect, segment)
  • Analysis of loss when tacking, gybing and during maneuver
  • Graphic display of weather history along the track

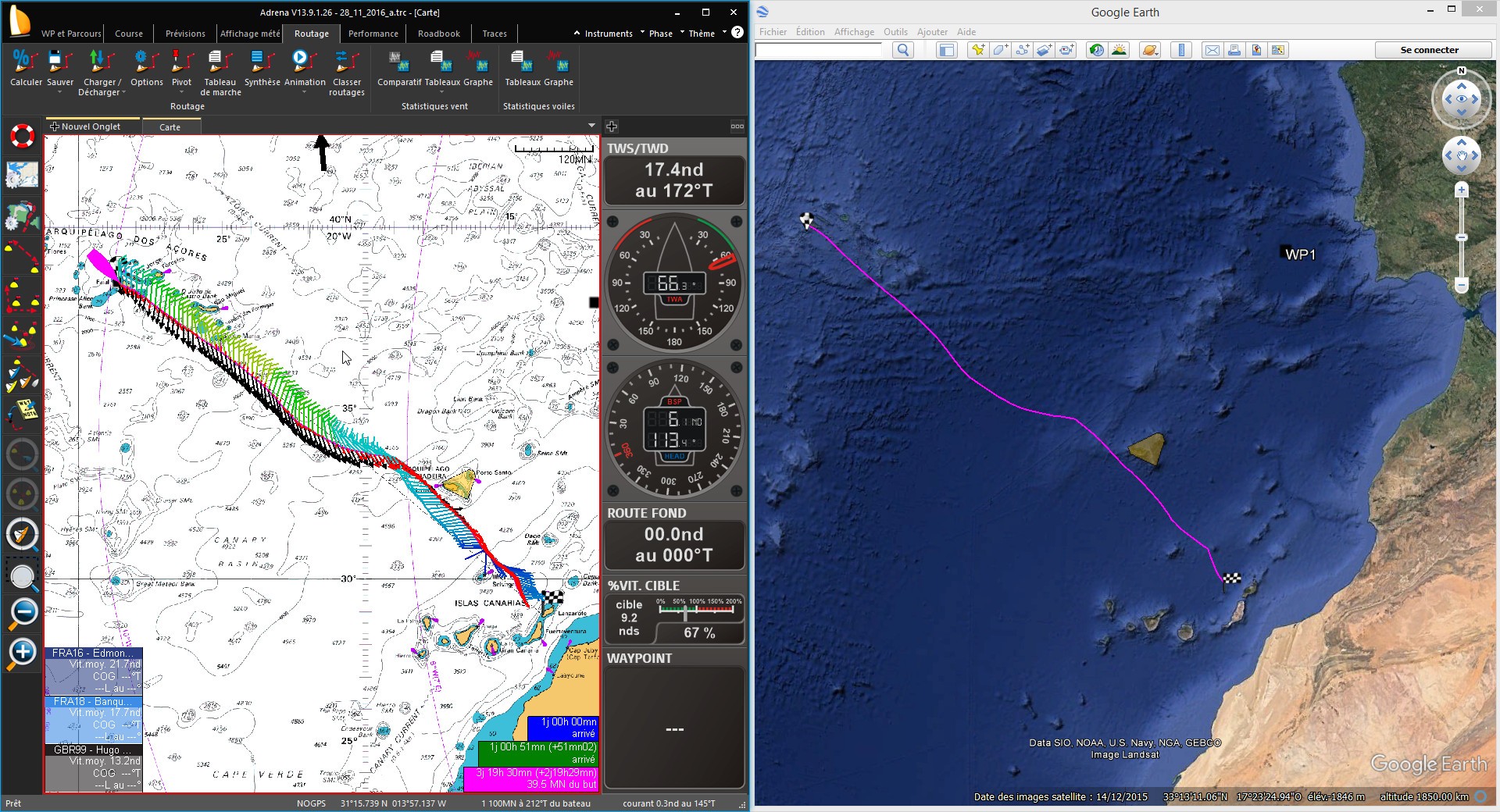

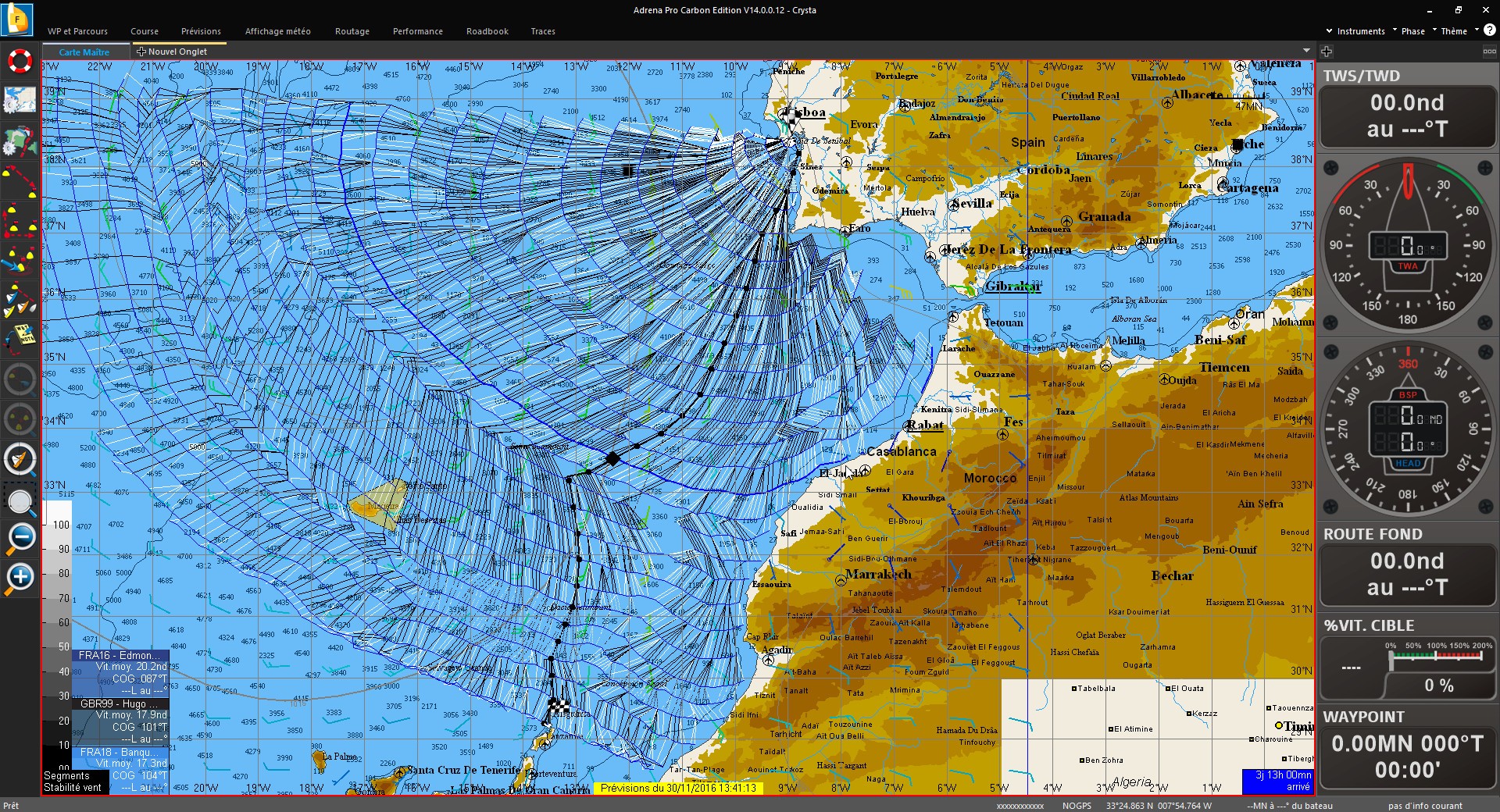

  • Calculation of optimum route while automatically avoiding coastlines
  • Routing in 2 clicks
  • Dual routing: sailing and motoring
  • Integration of the current into routing calculations
  • Routing of competitors
  • Safety: wind speed limit in routing
  • Summary table of the routing
  • Compulsory waypoint (pivot on isochrone)
  • Display of encountered conditions: wind, tide and waves
  • Routing calculation on a coastal route

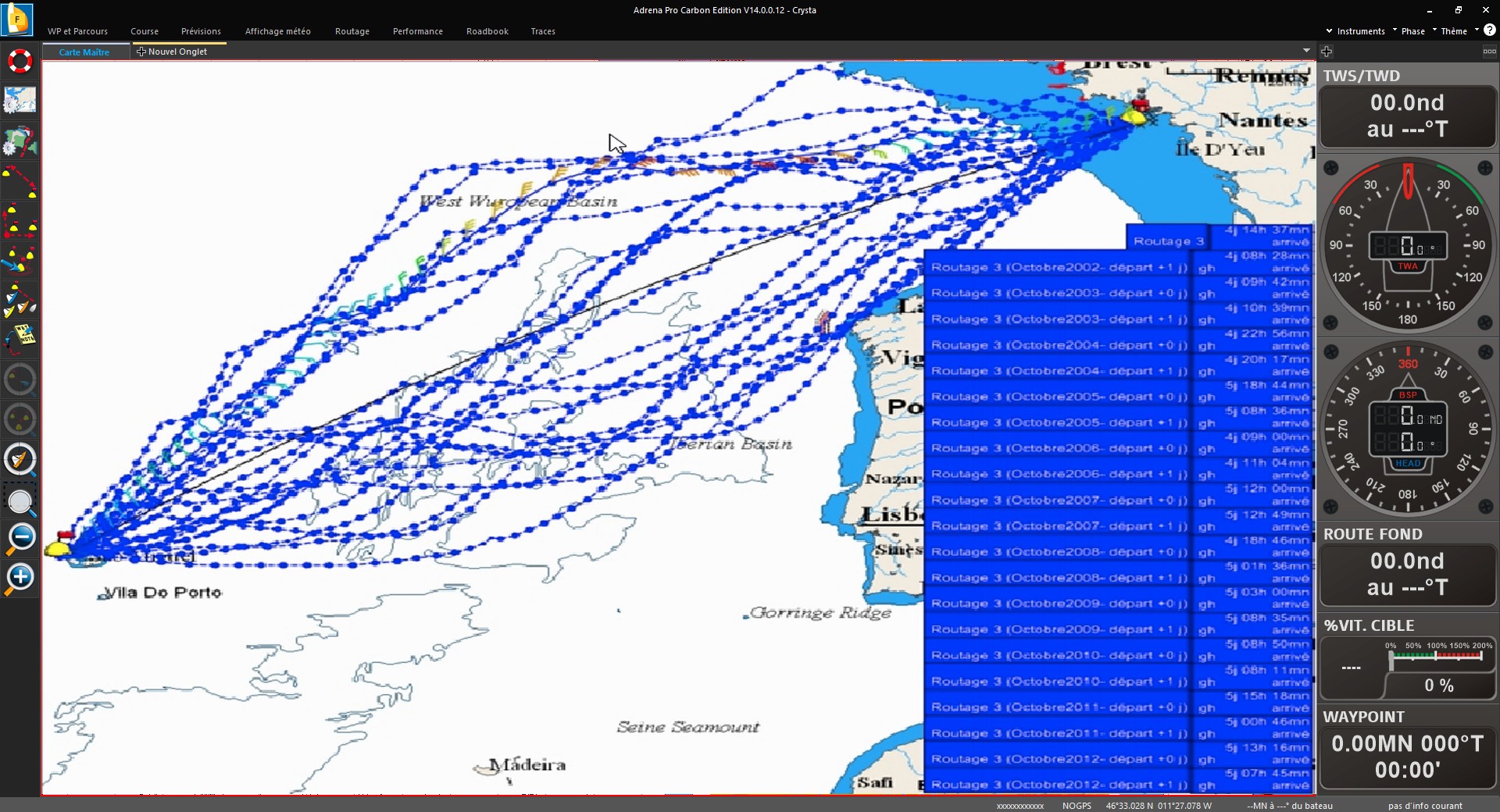

  • Simulation of several routings
  • Save/undelete a routing
  • Use of several GRIB files to calculate routing
  • Routing hypothesis: scanning of variables
  • Risk/delay assessment: inverse isochrones and isoroutes
  • Statistics on routing: wind, sails
  • Differential coloring of the route based on criteria
  • Video creation on routings
  • Micro-routing on laylines: “best side of the navigation square”
  • Multiple routings on historical GRIBS, global forecasting
  • Managing performance of multi-core CPU
  • Wind stability display

Routing

  • Calculation of optimum route while automatically avoiding coastlines
  • Routing in 2 clicks
  • Dual routing: sailing and motoring
  • Integration of the current into routing calculations
  • Routing of competitors
  • Safety: wind speed limit in routing
  • Summary table of the routing
  • Compulsory waypoint (pivot on isochrone)
  • Display of encountered conditions: wind, tide and waves
  • Routing calculation on a coastal route
  • Simulation of several routings
  • Save/undelete a routing
  • Use of several GRIB files to calculate routing
  • Routing hypothesis: scanning of variables
  • Risk/delay assessment: inverse isochrones and isoroutes
  • Statistics on routing: wind, sails
  • Differential coloring of the route based on criteria
  • Video creation on routings
  • Micro-routing on laylines: “best side of the navigation square”
  • Multiple routings on historical GRIBS, global forecasting
  • Managing performance of multi-core CPU
  • Wind stability display
